SCN34, Coilnagler, Kontakt

Anklicken des Bildes zum Zoomen

Beschreibung

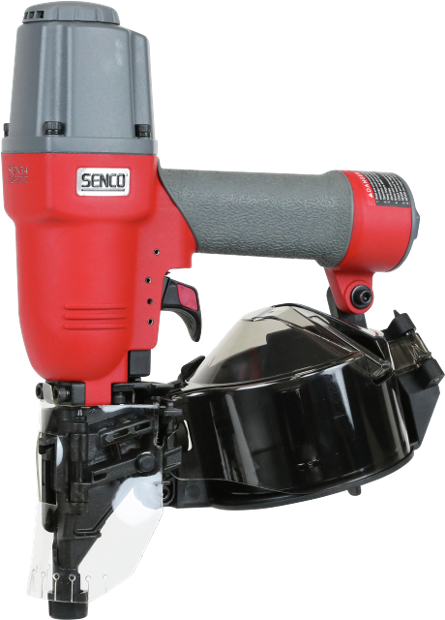

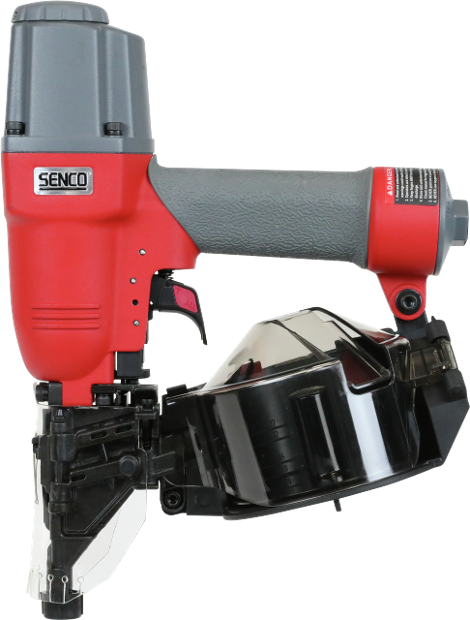

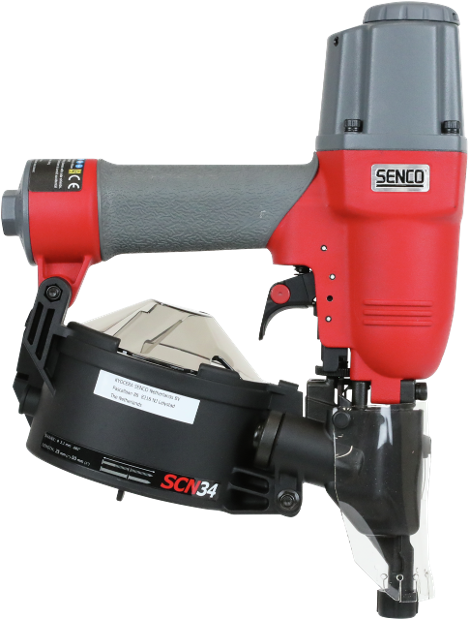

Das SCN34 ist ein leichter und kompakter Coilnagler, der Nägel von 25mm bis 50mm verarbeitet

Mehr anzeigen Weniger anzeigen

Informationen anfordern

Spezifikationen

Identifizierung

Serie: Pro
Artikelnummer: SCN34
GTIN: 8715274012261
Typ: SCN34

Technische Spezifikationen

Streifenwinkel: 16 °
Wicklung Typ: Konisch
Alternative wicklung Typ: Flach
Ölfrei: Nein
Arbeitstemperaturbereich: -18 - 49 °C
Legierungstyp: Drahtcolliert
Alternative Legierung: Kunststoffcolliert 9mm
Auslöseart: Umstellbar
Magazinkapazität: 400
Schüsse/Sekunde: 4
Lufteinlass Größe A: 3/8" Innen
Luftbedarf bei 60 Schüssen pro Minute: 43.8 l/m
Arbeitsdruck: 4.8 - 8.3 bar
Geräuschemmission: 83.1 Lpa
Geräuschemmision: 94.6 Lwa
Vibration: 3.81 m/s2

Spezifikationen für Befestiger

Nageltyp: Coilnägel
Glattschaft Typ: Glatter Schaft
Glattschaft Nagellänge: 25 - 50 mm
Glattschaft Nageldurchmesser: 1.6 - 2.1 mm
Ringschaft Typ: Ring-Schaft
Ringschaft Nagellänge: 25 - 50 mm
Ringschaft Nageldurchmesser: 1.6 - 1.6 mm
Steigung min.: 6.0 mm
Steigung max.: 6.0 mm
Max. Außendurchmesser Coilnagel: 100 mm

Nicht-technische Spezifikationen

Garantie: 1 Jahr
Dimensionen (TxBxH): 108 x 260 x 302 mm

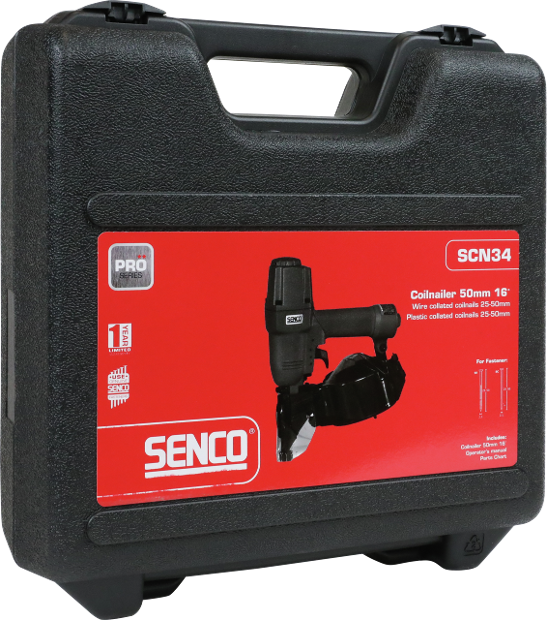

Inklusive Koffer: Ja

Logistische Spezifikationen

Nettogewicht: 1.55 kg

Verbundene Befestigungsmittel

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer SCN34 PDF 2 Mb
SCN34_de_CommercialProductSheet_1.5_1752238460022 PDF 2 Mb
