PS15XP Breitklammergerät

Anklicken des Bildes zum Zoomen

Beschreibung

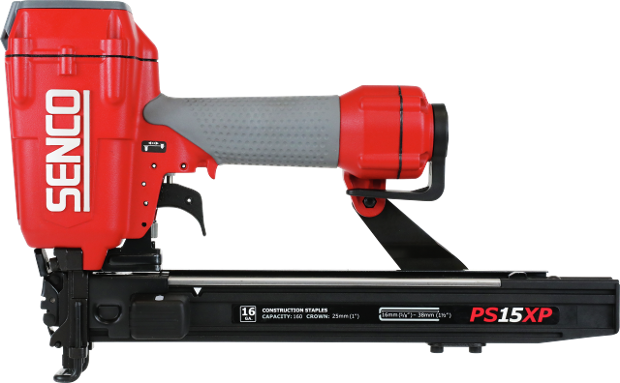

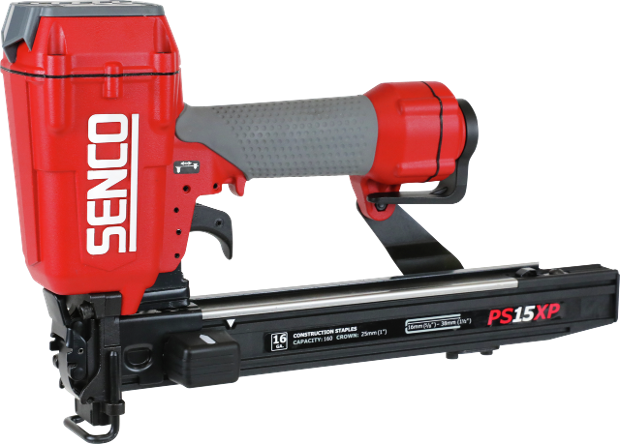

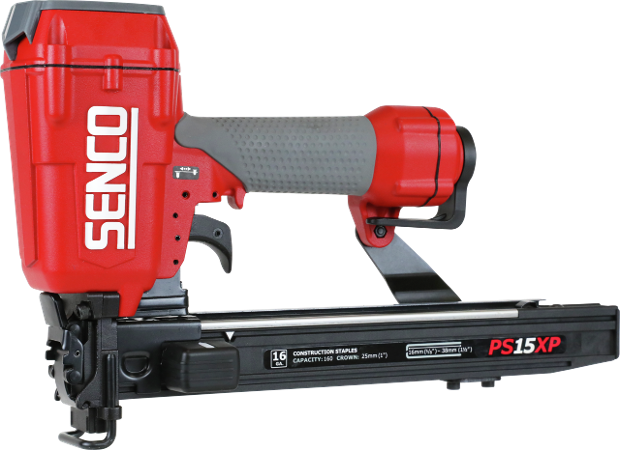

Das PS15XP ist ein pneumatisches Breitklammergerät, das 1,6-mm-Kronen-P-Klammern mit einer Länge von 16 bis 38 mm treibt. Dieses schwere Klammergerät ist Teil der XtremePro Serie und wurde für höchste Leistungsfähigkeit und Lebensdauer entwickelt. Sein Antriebsschienendesign ermöglicht eine erstklassige Kontrolle über das Befestigungsmittel und eine unübertroffene Treibfähigkeit.

Mehr anzeigen Weniger anzeigen

Informationen anfordern

Spezifikationen

Identifizierung

Serie: XtremePro
Article number: 9T2001N
GTIN: 8715274236148
Type: PS15XP

Technische Spezifikationen

Collation angle: 0 °
Oil free: Nein
Operating temperature: -18 - 49 °C
Collation type: Glue collated
Firing mode: Dual
Magazine capacity: 160
Shots / second: 10
Air inlet size: 3/8" female
Air consumption at 60 shots/minute: 90.0 l/m
Operating pressure: 4.8 - 8.3 bar
Gauge: 16

Spezifikationen für Befestiger

Staple type: Heavy wire staple
Staple length: 16 - 38 mm
Staple serie: P staple

Nicht-technische Spezifikationen

Warranty: 5 years
Dimensions (DxWxH): 105 x 387 x 229 mm
Includes case: Ja

Logistische Spezifikationen

Net weight: 2.3 kg

Verbundene Befestigungsmittel

Downloads

Manual SENCO PS15XP, PS20XP PDF 3 Mb
Manual SENCO Staplers PDF 31 Mb
Part chart SENCO PS15XP PDF 922 Kb
9T2001N_de_CommercialProductSheet_1.0_1727236327966 PDF 2 Mb
