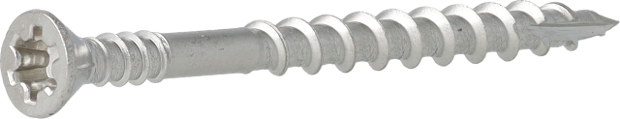

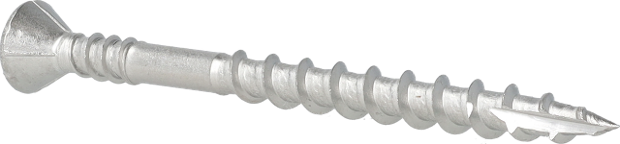

Fußbodenschraube auf Holz SD25 Nichtrostender Stahl, AISA 304 4,5x75mm

Anklicken des Bildes zum Zoomen

Beschreibung

Fußbodenschraube auf Holz, nichtrostender Stahl

Mehr anzeigen Weniger anzeigen

Harmonisierte Norm EN 14592:2008+A1:2012

Informationen anfordern

Spezifikationen

Identifizierung

Artikelnummer: 45RH75MS
GTIN: 8715274053363

Technische Spezifikationen

Legierungstyp: Kunststoffcolliert
Drahtmaterial: Nichtrostender Stahl, AISA 304
Umdrehungen pro Minute: 2300, 2500, 3000, 3300 RPM

Spezifikationen für Befestiger

Anwendung: Außenbereich
Spitzenart: Typ 17 Schneidspitze
Spitzenwinkel: 23 °
Schraubenkopf-Typ: Senkkopfschraube mit kleinem Kopf + 4 Kerben
Schraubenantrieb: Sencodrive 25
Schraubengewinde: 2/3 Grobgewinde
Menge Befestiger je Streifen / Coil: 50 - 50
Schraubenlänge: 75.0 mm
Schraubendurchmesser: 4.5 mm

CE-Spezifikationen

Charakteristischer Kopfdurchziehparameter: 14.0 N/mm²
DOP No: 45RH75MS
Nutzungsklasse: 3
Innengewindedurchmesser: 3.05 mm
Gewindelänge: 50.0 mm
Charakteristisches Fließmoment: 4300.0 Nmm
Torsionsverältnis: ≥ 1,5
Charakteristischer Torsionswiderstand: 1.88 Nm
Charakteristische Torsionsfestigkeit: 6.0 Nm
Charakteristische Zugfestigkeit: 4000.0 N
Harmonisierte Norm: EN 14592:2008+A1:2012
Charakteristischer Ausziehparameter: 12.5 N/mm²

Nicht-technische Spezifikationen

Anzahl der Packstücke: 1000

Logistische Spezifikationen

Nettogewicht: 5.57 kg

Verbundene Werkzeuge

Downloads

45RH75MS_de_CommercialProductSheet_1.8_1752214193538 PDF 1 Mb
45RH75MS_de_DeclarationOfPerformanceDoP_1.4eu_1750104332580 PDF 64 Kb
