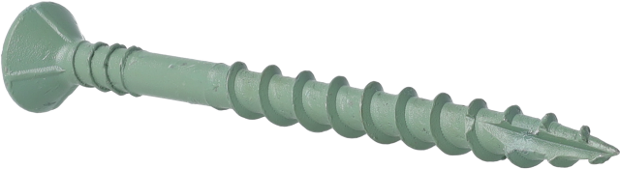

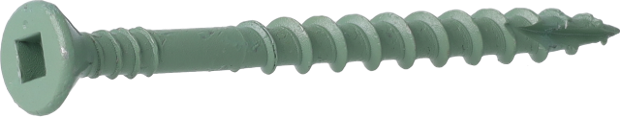

Fußboden-/Terassenschraube auf Holz SD25 weatherex 4,2x55mm

Anklicken des Bildes zum Zoomen

Beschreibung

Fußboden-/Terassenschraube Holz auf Holz, Wetherex II

Mehr anzeigen Weniger anzeigen

Harmonisierte Norm EN 14592:2008+A1:2012

Informationen anfordern

Spezifikationen

Identifizierung

Artikelnummer: 42W55MWN
GTIN: 8715274251844

Technische Spezifikationen

Legierungstyp: Kunststoffcolliert
Drahtmaterial: Kohlenstoffstahl Standard Zugfestigkeit
Umdrehungen pro Minute: 2300, 2500, 3000, 3300 RPM

Spezifikationen für Befestiger

Oberfläche: Witterungsbeständigkeit II
Anwendung: Außenbereich
Spitzenart: Typ 17 Schneidspitze
Spitzenwinkel: 23 °
Schraubenantrieb: Sencodrive 25
Schraubengewinde: 2/3 Grobgewinde
Menge Befestiger je Streifen / Coil: 50 - 50
Schraubenlänge: 55.0 mm
Schraubendurchmesser: 4.2 mm

CE-Spezifikationen

Charakteristischer Kopfdurchziehparameter: 16.0 N/mm²
DOP No: 42W55MWN
Materialhinweis auf CE-Etikett: Unliegierter Stahl
Nutzungsklasse: 3
Innengewindedurchmesser: 3.15 mm
Gewindelänge: 36.0 mm
Charakteristisches Fließmoment: 3283.0 Nmm
Torsionsverältnis: ≥ 1,5
Charakteristischer Torsionswiderstand: 1.74 Nm
Charakteristische Torsionsfestigkeit: 3.47 Nm
Charakteristische Zugfestigkeit: 4700.0 N
Harmonisierte Norm: EN 14592:2008+A1:2012
Charakteristischer Ausziehparameter: 12.0 N/mm²

Nicht-technische Spezifikationen

Anzahl der Packstücke: 4000

Verbundene Werkzeuge

Downloads

42W55MWN_de_CommercialProductSheet_1.12_1752288168532 PDF 1 Mb
DOP VS-CPR-201305-S037 PDF 176 Kb
42W55MWN_de_DeclarationOfPerformanceDoP_1.3eu_1750144300399 PDF 64 Kb
