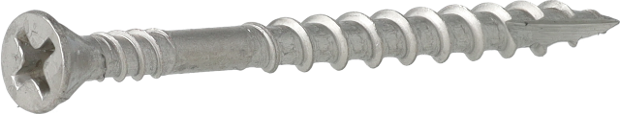

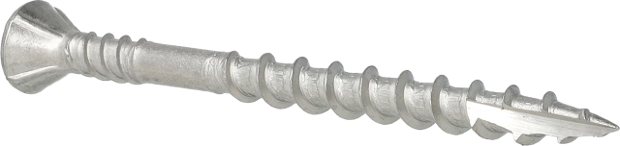

Fußbodenschraube auf Holz SD25 Nichtrostender Stahl, AISA 304 4,2x45mm

Anklicken des Bildes zum Zoomen

Beschreibung

Fußbodenschraube Holz auf Holz, nichtrostender Stahl

Mehr anzeigen Weniger anzeigen

Harmonisierte Norm EN 14592:2008+A1:2012

Informationen anfordern

Spezifikationen

Identifizierung

Artikelnummer: 42R45MS
GTIN: 8715274013343

Technische Spezifikationen

Legierungstyp: Kunststoffcolliert
Drahtmaterial: Nichtrostender Stahl, AISA 304
Umdrehungen pro Minute: 2300, 2500, 3000, 3300 RPM

Spezifikationen für Befestiger

Anwendung: Außenbereich
Spitzenart: Typ 17 Schneidspitze
Spitzenwinkel: 23 °
Schraubenkopf-Typ: Senkkopfschraube mit kleinem Kopf + 4 Kerben
Schraubenantrieb: Sencodrive 25
Schraubengewinde: 2/3 Grobgewinde
Menge Befestiger je Streifen / Coil: 50 - 50
Schraubenlänge: 45.0 mm
Schraubendurchmesser: 4.2 mm

CE-Spezifikationen

Charakteristischer Kopfdurchziehparameter: 16.0 N/mm²
DOP No: 42R45MS
Nutzungsklasse: 3
Innengewindedurchmesser: 3.15 mm
Gewindelänge: 30.0 mm
Charakteristisches Fließmoment: 2400.0 Nmm
Torsionsverältnis: ≥ 1,5
Charakteristischer Torsionswiderstand: 1.88 Nm
Charakteristische Torsionsfestigkeit: 3.47 Nm
Charakteristische Zugfestigkeit: 3200.0 N
Harmonisierte Norm: EN 14592:2008+A1:2012
Charakteristischer Ausziehparameter: 12.0 N/mm²

Nicht-technische Spezifikationen

Anzahl der Packstücke: 1000

Verbundene Werkzeuge

Downloads

42R45MS_de_CommercialProductSheet_1.5_1752264096019 PDF 1 Mb
42R45MS_de_DeclarationOfPerformanceDoP_1.1eu_1750132484910 PDF 64 Kb
