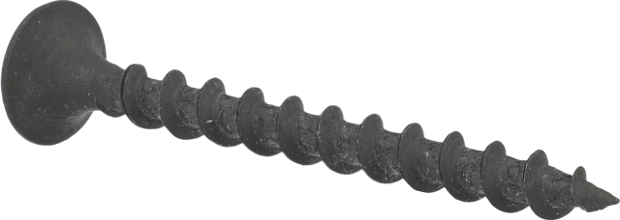

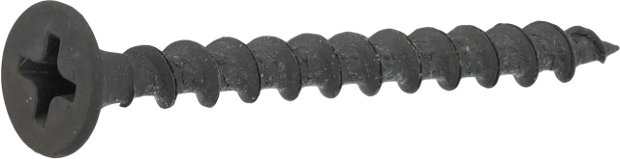

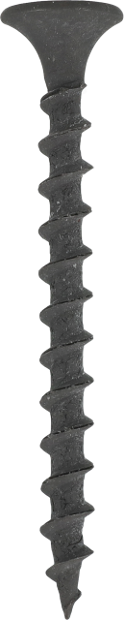

Gipskarton auf Holz Schraube PH2 Phosphatiert 3,9x45mm

Anklicken des Bildes zum Zoomen

Beschreibung

Gipskartonschraube auf Holz, phosphatiert

Mehr anzeigen Weniger anzeigen

Harmonisierte Norm EN 14566:2008+A1:2009

Informationen anfordern

Spezifikationen

Identifizierung

Artikelnummer: 39A45MPN
GTIN: 8715274251646

Technische Spezifikationen

Legierungstyp: Kunststoffcolliert
Drahtmaterial: Kohlenstoffstahl Standard Zugfestigkeit
Umdrehungen pro Minute: 3300, 4000, 5000 RPM

Spezifikationen für Befestiger

Oberfläche: Phosphatiert (grau)
Anwendung: Innenbereich
Spitzenart: Scharf
Spitzenwinkel: 23 °
Schraubenkopf-Typ: Senkkopfschraube
Schraubenantrieb: Philips 2
Schraubengewinde: Grob
Menge Befestiger je Streifen / Coil: 50 - 50
Schraubenlänge: 45.0 mm
Schraubendurchmesser: 3.9 mm

CE-Spezifikationen

DOP No: 39A45MPN
Nutzungsklasse: 1
Innengewindedurchmesser: 2.65 mm
Gewindelänge: 40.5 mm
Harmonisierte Norm: EN 14566:2008+A1:2009

Nicht-technische Spezifikationen

Anzahl der Packstücke: 4000

Verbundene Werkzeuge

Downloads

39A45MPN_de_CommercialProductSheet_1.7_1752327898498 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
39A45MPN_de_DeclarationOfPerformanceDoP_1.2eu_1750168746454 PDF 59 Kb
