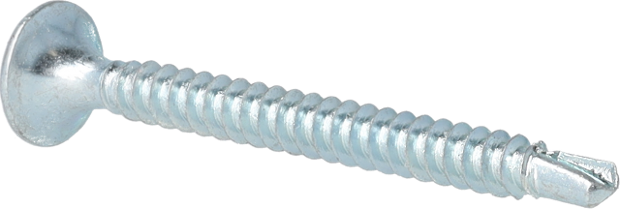

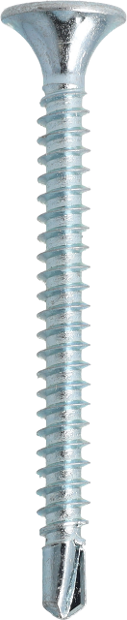

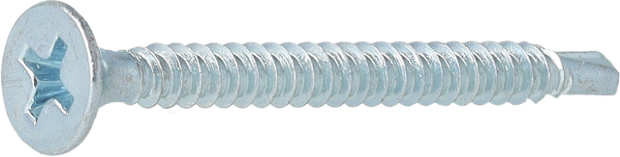

Gipskarton auf Ständerprofil bis 2,25mm Schraube PH2 Klarer Zink 3,5x45mm

Anklicken des Bildes zum Zoomen

Beschreibung

Gipskartonschraube auf Metallständer bis 3mm, verzinkt

Mehr anzeigen Weniger anzeigen

Harmonisierte Norm EN 14566:2008+A1:2009

Informationen anfordern

Spezifikationen

Identifizierung

Artikelnummer: 35Q45MC
GTIN: 8715274017860

Technische Spezifikationen

Legierungstyp: Kunststoffcolliert
Drahtmaterial: Kohlenstoffstahl Standard Zugfestigkeit
Umdrehungen pro Minute: 2300, 2500, 3000, 3300 RPM

Spezifikationen für Befestiger

Oberfläche: Klarer Zink
Anwendung: Innenbereich
Spitzenart: Selbstbohrend
Spitzenwinkel: 110 °
Schraubenkopf-Typ: Senkkopfschraube
Schraubenantrieb: Philips 2
Schraubengewinde: Fein
Menge Befestiger je Streifen / Coil: 50 - 50
Schraubenlänge: 45.0 mm
Schraubendurchmesser: 3.5 mm

CE-Spezifikationen

DOP No: 35Q45MC
Nutzungsklasse: 1
Innengewindedurchmesser: 2.65 mm
Gewindelänge: 38.2 mm
Harmonisierte Norm: EN 14566:2008+A1:2009

Nicht-technische Spezifikationen

Anzahl der Packstücke: 1000

Logistische Spezifikationen

Nettogewicht: 2.5 kg

Verbundene Werkzeuge

Downloads

35Q45MC_de_CommercialProductSheet_1.6_1752210555080 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
35Q45MC_de_DeclarationOfPerformanceDoP_1.1eu_1750103561584 PDF 60 Kb
