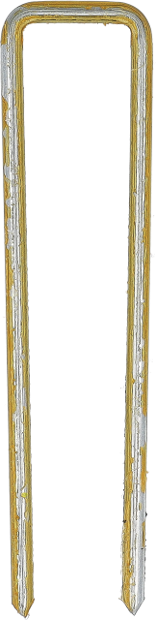

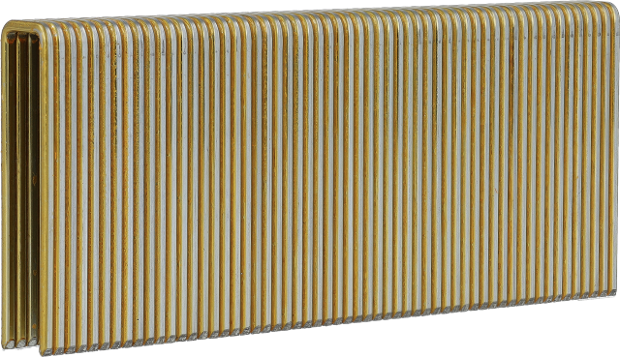

Q Klammer 38mm

Anklicken des Bildes zum Zoomen

Beschreibung

Q Klammer, verzinkt, Sencotiert

Mehr anzeigen Weniger anzeigen

Anwendungen

Rahmung, Ummantelung, Unterböden, Terrassendielen, Lattung, Türen und Fenster, Zäune, Paletten und Kisten, Box-Montage, Verkleidung, Möbel-Rahmenbau

Mehr anzeigen Weniger anzeigen

Informationen anfordern

Spezifikationen

Identifizierung

Artikelnummer: Q17BABB
GTIN: 8715274017167

Technische Spezifikationen

Streifenwinkel: 0 °
Legierungstyp: Verleimt
Drahtmaterial: Kohlenstoffstahl Standard Zugfestigkeit
Drahtstärke: 15

Spezifikationen für Befestiger

Oberfläche: Normal verzinkt
Beschichtung: Sencot
Anwendung: Innenbereich
Spitzenart: Meißelspitze
Spitzenwinkel: 70 °
Klammertyp: Schwere Drahtklammer
Klammerstärke: 1.7 mm
Klammerdrahtstärke: 1.78 mm
Klammerrückenbreite Nennmaß: 11.1 mm
Klammerrückenbreite Innenmaß: 7.67 mm
Klammerserie: Q-Klammer
Menge Befestiger je Streifen / Coil: 56 - 58
Klammerlänge: 38.0 mm

Nicht-technische Spezifikationen

Anzahl der Packstücke: 5000

Logistische Spezifikationen

Nettogewicht: 8.01 kg

Verbundene Werkzeuge

Downloads

Q17BABB_de_CommercialProductSheet_1.5_1752322079891 PDF 1 Mb
