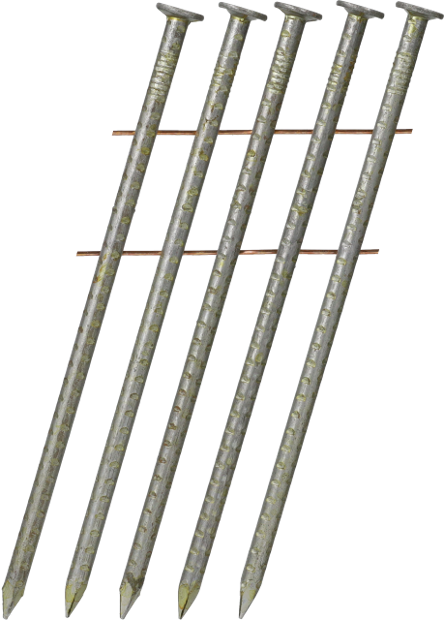

HB Coilnagel geriffelt 3,1x90mm

Anklicken des Bildes zum Zoomen

Beschreibung

3,1mm Coilnagel, Flachkopf, geriffelt, blank, sencotiert

Mehr anzeigen Weniger anzeigen

Anwendungen

Rahmung, Unterböden, Traversen, Paletten und Kisten

Mehr anzeigen Weniger anzeigen

Harmonisierte Norm EN 14592:2008+A1:2012

Informationen anfordern

Spezifikationen

Identifizierung

Artikelnummer: HB29APBF
GTIN: 8715274016924

Technische Spezifikationen

Streifenwinkel: 16 °
Wicklung Typ: Flach
Legierungstyp: Drahtcolliert
Drahtmaterial: Kohlenstoffstahl Standard Zugfestigkeit

Spezifikationen für Befestiger

Oberfläche: Blank Standardzugfestigkeit
Beschichtung: Sencot
Anwendung: Innenbereich
Nageltyp: Coilnägel
Nagelschaft Typ: Ballistischer Rillenschaft
Spitzenart: Diamant
Spitzenwinkel: 40 °
Steigung min.: 8.4 mm
Steigung max.: 8.4 mm
Max. Außendurchmesser Coilnagel: 122 mm
Nagelschaft Nageldurchmesser: 3.1 mm
Menge Befestiger je Streifen / Coil: 225 - 225
Nagelschaft Nagellänge: 90.0 mm

CE-Spezifikationen

Charakteristischer Kopfdurchziehparameter: 22.45 N/mm²
DOP No: HB29APBF
Korrosionsschutz in Micron: 0
Nutzungsklasse: 1
Oberflächenart: Beschichtung Typ 3
Beschichtungslänge: 61.5 mm
Kopf-Querschnittsfläche: 37.0 mm
Gewindelänge: 63.0 mm
Charakteristisches Fließmoment: 3193.0 Nmm
Charakteristische Zugspannung: 629.0 N/mm²
Harmonisierte Norm: EN 14592:2008+A1:2012
Charakteristischer Ausziehparameter: 3.4 N/mm²

Nicht-technische Spezifikationen

Anzahl der Packstücke: 4050

Logistische Spezifikationen

Nettogewicht: 21.51 kg

Verbundene Werkzeuge

Downloads

HB29APBF_de_CommercialProductSheet_1.9_1762371833363 PDF 1 Mb
HB29APBF_de_DeclarationOfPerformanceDoP_1.0eu_1762371900711 PDF 64 Kb
